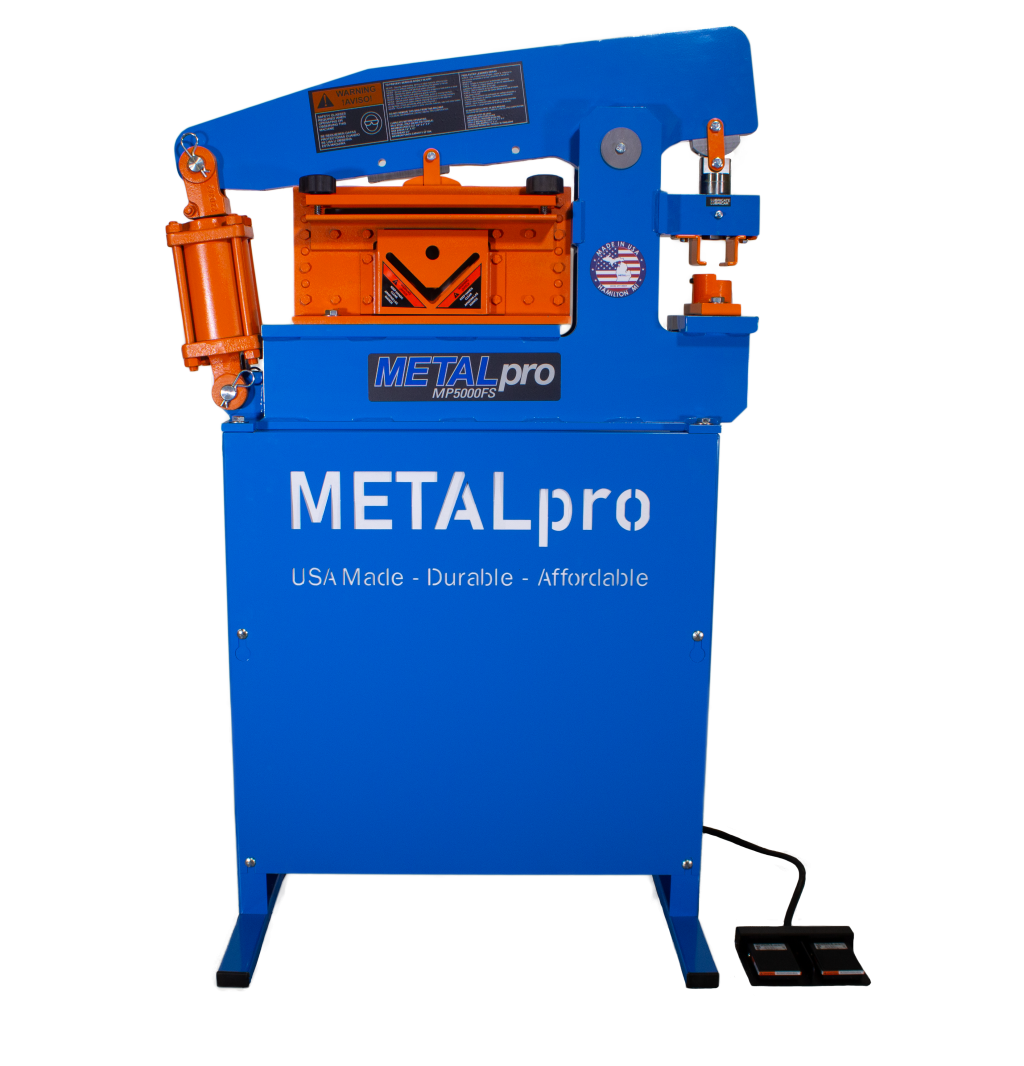

Metalpro 50 Ton Ironworker
The MP5000FS is a 50-ton ironworker, powered by a 110V, single phase standard wall outlet or generator. Its compact, sturdy design boasts 50 tons of pressure at the punch station and 25 tons of pressure at the central workstation. This allows the user to punch a 15/16” round hole through 1/2” mild steel (capable of larger holes through thinner mild steel). METALpro’s footswitch design controls a hydraulic power system.
This machine comes standard equipped with METALpro’s 12 inch, 3 in 1 combination shear. The shear consists of a flat bar shear, angle iron shear and round/square rod shear, built into one singular unit. METALpro stands behind their machines with a three-year limited manufacturing warranty. All METALpro machines and accessories are proudly made in the USA and built to last.
The MP5000FS is a 50-ton ironworker, powered by a 110V, single phase standard wall outlet or generator. Its compact, sturdy design boasts 50 tons of pressure at the punch station and 25 tons of pressure at the central workstation. This allows the user to punch a 15/16” round hole through 1/2” mild steel (capable of larger holes through thinner mild steel). METALpro’s footswitch design controls a hydraulic power system.
This machine comes standard equipped with METALpro’s 12 inch, 3 in 1 combination shear. The shear consists of a flat bar shear, angle iron shear and round/square rod shear, built into one singular unit. METALpro stands behind their machines with a three-year limited manufacturing warranty. All METALpro machines and accessories are proudly made in the USA and built to last.
The MP5000FS is a 50-ton ironworker, powered by a 110V, single phase standard wall outlet or generator. Its compact, sturdy design boasts 50 tons of pressure at the punch station and 25 tons of pressure at the central workstation. This allows the user to punch a 15/16” round hole through 1/2” mild steel (capable of larger holes through thinner mild steel). METALpro’s footswitch design controls a hydraulic power system.
This machine comes standard equipped with METALpro’s 12 inch, 3 in 1 combination shear. The shear consists of a flat bar shear, angle iron shear and round/square rod shear, built into one singular unit. METALpro stands behind their machines with a three-year limited manufacturing warranty. All METALpro machines and accessories are proudly made in the USA and built to last.
Country of Origin
USA
Capacity
50 tons
Warranty
3 Years
Shear Capacity - Flat Bar
Up to 1/2" Mild Steel
Shear Capacity - Angle Iron
1/4" x 4" x 4"
Shear Capacity - Rod
3/4"
Shear Capacity - Square
5/8"
Forming Capacity
Up to 1/2" Mild Steel
*brake and forming dies sold separately
Forming Tonnage Capacity
28 Tons
Punch Capacity
Up to 1/2" Mild Steel
Power
110/120V Single Phase
Motor
1.5 horsepower
Hydraulic Pressure
2900psi
Throat Depth
3¾"
Operating Weight
650 lbs
Machine Dimensions
24" x 36.5" x 59"
OSHA/ASNI B11-8
Approved
