Mechanical Caliper-Jaw Inside Micrometer

How to Read an Inside Micrometer

The pitch of the screw thread on a standard spindle is 40 threads per inch. One revolution of the thimble advances the spindle face toward or away from the anvil face precisely 1/40" or 0.025" equaling the distance between two graduations on the sleeve. The reading line on the sleeve is divided into 40 equal parts by vertical lines that correspond to the number of threads on the spindle. Therefore, each vertical line designates 1/40" or 0.025". The graduation marks on the upper side of the scale represent .050” and is numbered every 2nd mark so every number represents .100”. The lower side of the scale is divided even further with each graduation representing .025”. Thus every 4th line, which is longer than the others, designates 0.100" and matches the upper scale. The beveled edge of the thimble is divided into 25 equal parts with each line representing 0.001" and every 5th line is numbered.

Example:

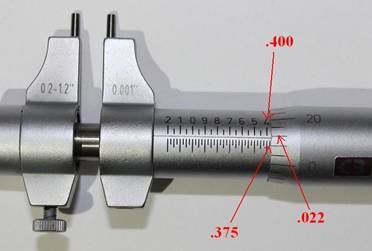

Reading of .372

Remember that the scale is reading backwards (left to right) which is just the opposite of a standard outside micrometer. In the picture above, reading from the upper side of the scale, the bevel edge of the thimble is positioned to where it is setting less than the .400 mark. Looking at the lower part of the scale you can see one more graduation mark revealed and that would be the .375 mark. The next mark that can’t be seen is the .350 mark and that is the figure to begin with to determine the total value. The scale on the thimble is showing the second mark from the .020 graduation mark. Again remember that this scale reads backwards so that would read .022”. Adding the two together the total value would be .350” + .022” = .372”
